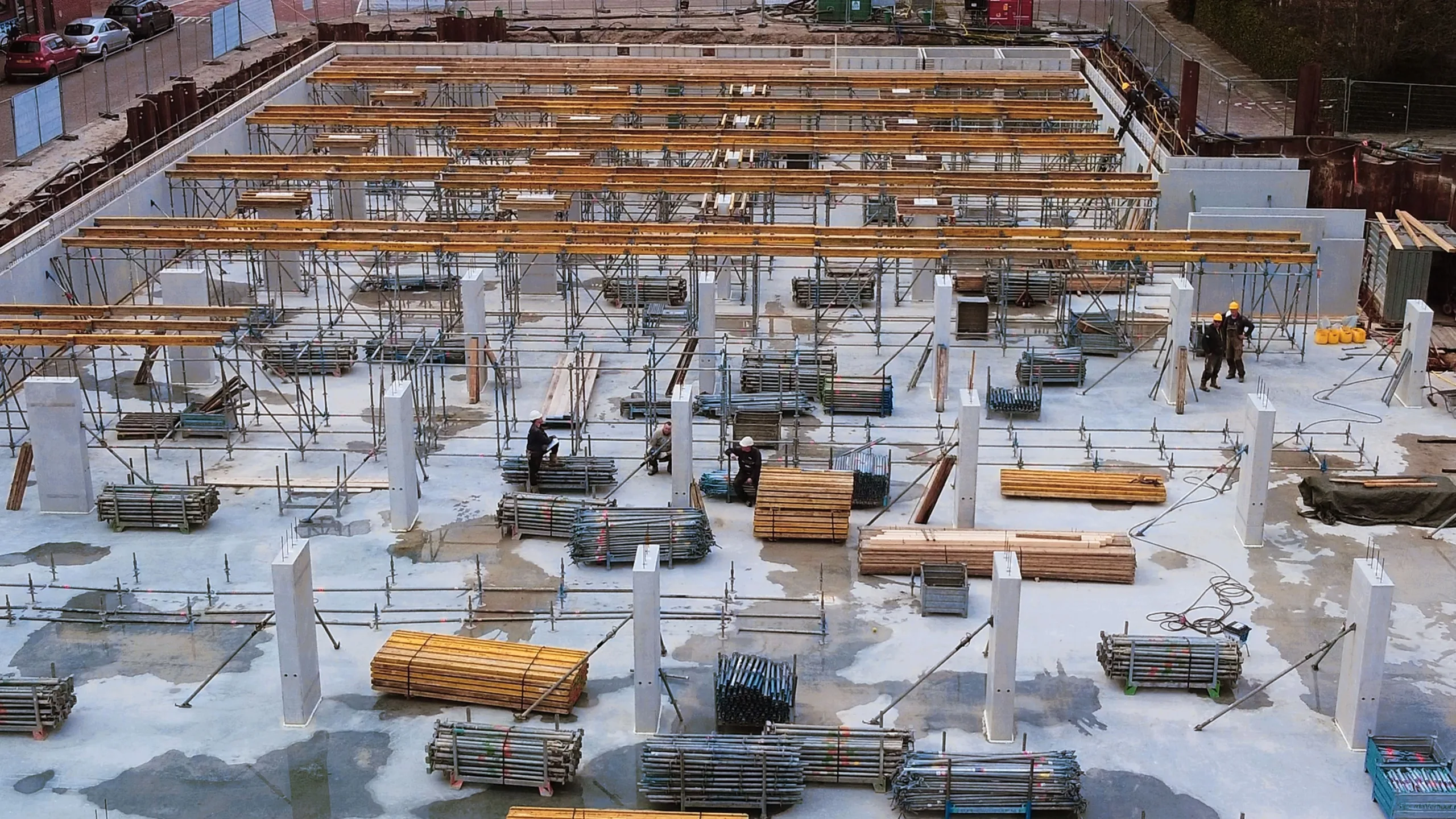

Bodrum Otopark — Kalıp Planı ve Metraj
Zemin altı otopark katı: DXF kalıp planı, çizimden çıkarılan metraj ve beyan edilen metrajın karşılaştırması.
Explore the model
Sheets
Analysis model
| Section | Shape | Material | Depth | Width |
|---|---|---|---|---|
| S60X60 | Rectangular | C35 | 0.6 | 0.6 |
| K30X70 | Rectangular | C35 | 0.7 | 0.3 |
| D20 | Shell-Thin | C35 | 0.2 | — |
| P30 | Shell-Thin | C35 | 0.3 | — |
Read from the student’s own SAP2000 export. Nothing is re-analysed and no design check is performed — this shows what was modelled and, if results were exported, what the model reported.
Takeoff
K02-bodrum-kat-kalip-plani.dxf
| Counts as | From drawing | Declared | Difference |
|---|---|---|---|
| m² | 1068.8 | 956.2 | +112.5 |
| 28 | 28 | 0 | |
| m | 337.5 | 327.4 | +10.12 |
| m | 212.2 | 205.8 | +6.37 |
Extracted from drawing geometry: closed shapes give area, lines give length, blocks give counts. Openings drawn as separate closed shapes are ADDED, not subtracted. Treat this as a cross-check, never as a bill of quantities.
Keşif / metraj
| No | Poz no | Description | Unit | Quantity | Unit price | Amount |
|---|---|---|---|---|---|---|
| 1 | ÖRNEK.BETON.C35 | C 35/45 hazır beton dökülmesi (pompayla) | m³ | 206.262 | 4180.00 | 862175.16 |
| 2 | ÖRNEK.KALIP.DOSEME | Döşeme (tabliye) kalıbı yapılması | m² | 1068.750 | 1020.00 | 1090125.00 |
| 3 | 15.160.1003 | Ø 8 - Ø 12 mm nervürlü beton çelik çubuğu | ton | 0.964 | — | — |
The detail rows give 1068.750 but the line states 956.250.
No unit price for poz 15.160.1003.
Unit weight for Ø10 should be 0.617 kg/m. The entered 0.395 kg/m is Ø8’s unit weight.
A working sheet produced from your own model and drawing. Quantities are a starting draft and every figure is editable; prices are the reference data you maintain. This is NOT an approved keşif, a tender or a progress payment, and it carries no engineering or commercial responsibility.
Price list: Örnek birim fiyat listesi

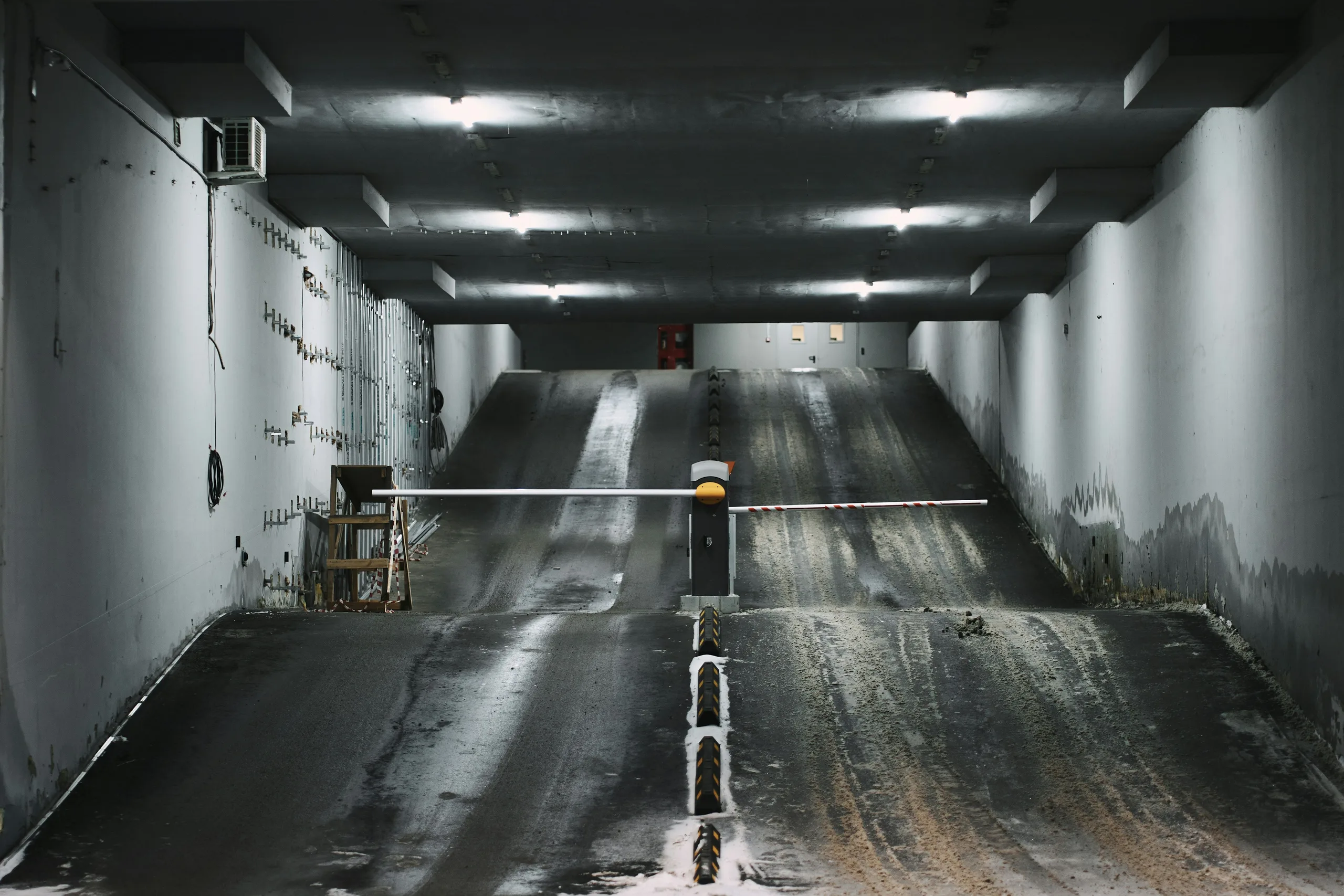

İki bodrum katlı otoparkın bodrum kat kalıp planı ve metrajı. 7.50 m açıklıklı 6×3 akslı sistem; rampa boşluğu ve perde duvarlar plana işlendi. Metraj bölümünde çizimden okunan miktarlar ile hesap föyümdeki değerler yan yana; kalıp alanındaki fark rampa boşluğunun ayrı kapalı poligon olarak çizilmesinden kaynaklanıyor — sistem boşlukları çıkarmıyor, ekliyor. Analiz modeli döşeme kabukları ve P1/P2 perdeleriyle birlikte aktarıldı, çözüm sonuçları henüz dahil değil. Keşif taslağı da yüklendi. Kalıp satırındaki miktarı hesap föyümden (rampa boşluğu düşülmüş olarak) girdim, detay satırları ise çizimden geliyor — sistem ikisinin uyuşmadığını işaretliyor. Perde donatısı henüz kontrol edilmedi ve fiyatlandırılmadı.
